Trilogy N

Gallery

No items found.

Linear profile, easy application and aesthetic integration.

A++ Energy Efficiency

CE European Conformity

Restriction of Hazardous Substances

Trilogy N is a very versatile luminaire, mainly used in:

Industrial lightingto illuminate warehouses with shelving and internal or external production areas, canopies, etc..
Urban lightingAs a projector for building facades and for highlighting details such as signs and billboards.
‍

Linear profile, easy application and aesthetic integration.

Hardened glass to protect the optics and LEDs in IP66 construction, for maximum protection from corrosive agents even in the most severe industrial applications.

Special 20S optics available for spot applications (8° beam).

Photovoltaic version available.

Adjustable and sliding mounting brackets.

Control systems available:

1-10V
DALI.

LED module type	Lumileds
Step MacAdam	5 (3 on request)
LED driver	Philips Xitanium
Power supply	230 VAC
Efficiency min. - max.	91 - 118 lm/W
>L80 B10 F10**	>80,000 hours
Power factor [PF]	>0.95
Body	Aluminium
Glass	Hardened 4 mm
Light colour	3000 K - 4000 K - 5700 K
Colour rendering index	CRI >75
Degree of protection	IP66
Insulation [Class]	I or II
Operating temperature	-40° ÷ +50 °C
Weight	1.5 - 2.5 - 4.0 kg

‍

** Failure rate F10 including driver.

cm	Models	Total power [W]	*Luminaire Flux [lm]**	LED module flow [lm]
30	5R700	12	1100	1500
60	15R700	33	3400	4125
100	20R550	35	3600	4375
100	20R700	40	4350	5000
100	12M400	59	6980	7985
100	12M525	77	8950	10290

‍

* With 13S optics

Optics

1A
3S
13S
20S
15S
28S
29A
56A
58S
59A
105S

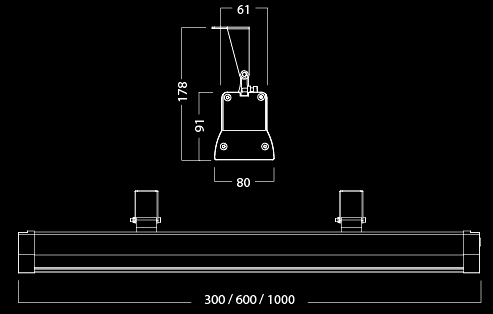

Dimensions [mm]:

Trilogy N
